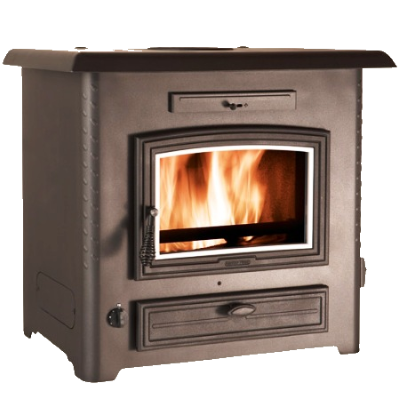

Stratford TF Series
Central Heating Boiler Stoves
'Stratford' - The industries leading boiler stove with models ranging from 25,000 to 82,000 BTU’s to water. Complete home heating has never looked so good.
The Stratford boiler stove is a true powerhouse at the heart of any central heating system. The Stratford has been designed specifically for its role as a boiler stove and stands head and shoulders above the competition.
Whether you burn wood or solid fuel, this stove has the features you need to keep both your home and your water warm.
In fact, you can choose the heat you need through its thermostatic controls – so you will always step out of a cold winter's day into a warm home.
Each model within the Stratford boiler stove range has a unique anti-cold water corrosion system and increased steel thickness, giving you years of trouble-free heating.
The largest boiler stove comfortably outputs 82,000 BTUs to hot water, which could heat up to 10 radiators.
Features:
- * Burns wood and solid fuel
- * Built in cross lateral flow boiler for a consistent water temperature
- * Anti cold water corrosion system
- * Water sensing thermostatic control
- * Externally controlled multi fuel riddling grate
- * Secondary burn for higher efficiency
- * Primary Air Diversion System
- * Air wash system for clean glass
- * Top or rear flue fitting
- * Three year warranty
Accessories:
- * Lattice door tracery
- * Stands
Technical Specifications:
| Model | Output to room Kw | Output to water Kw | No. of radiators in average installation | Height mm | Width mm | Depth mm | Flue Diam | Packed weight |
|---|---|---|---|---|---|---|---|---|
| TF30B | 2 Kw |
7.5 Kw |
* 3 - 4 | 596 mm |
562 mm |
389 mm |
127 mm |
106 Kg |
| TF70B | 3.5 Kw |
17.5 Kw |
* 5 - 7 | 709 mm |
780 mm |
486 mm |
152 mm |
176 Kg |
| TF90B | 4.5 Kw |
24 Kw |
* 8 - 10 | 709 mm |
780 mm |
546 mm |
152 mm |
188 Kg |
* Based on double panel radiators 1000mmx600mm (excluding heat leak radiator)
